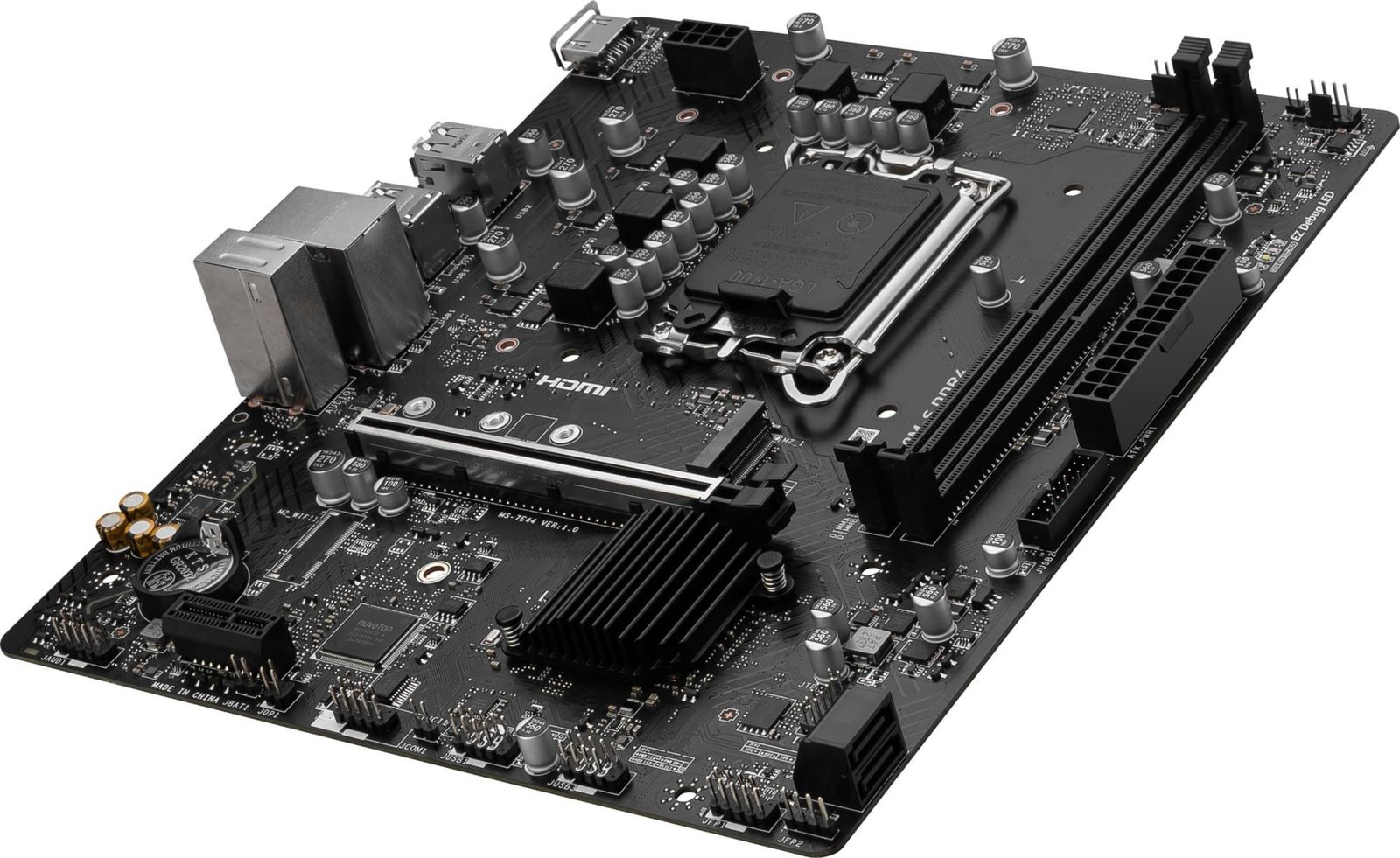

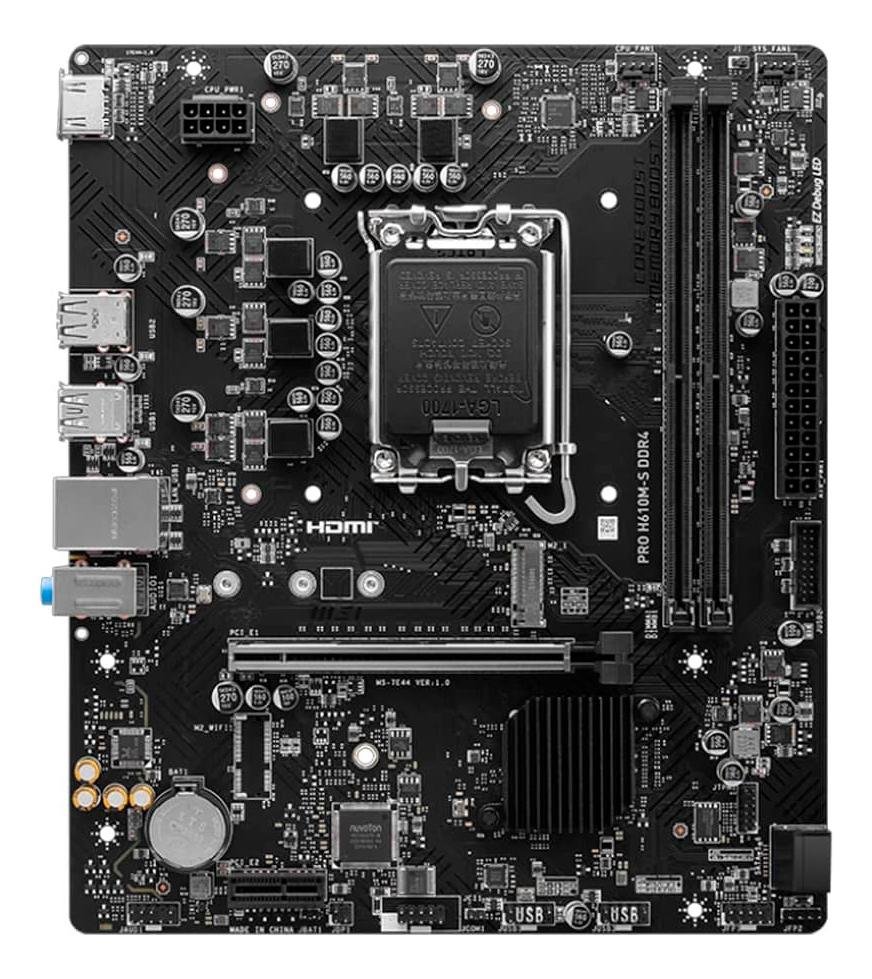

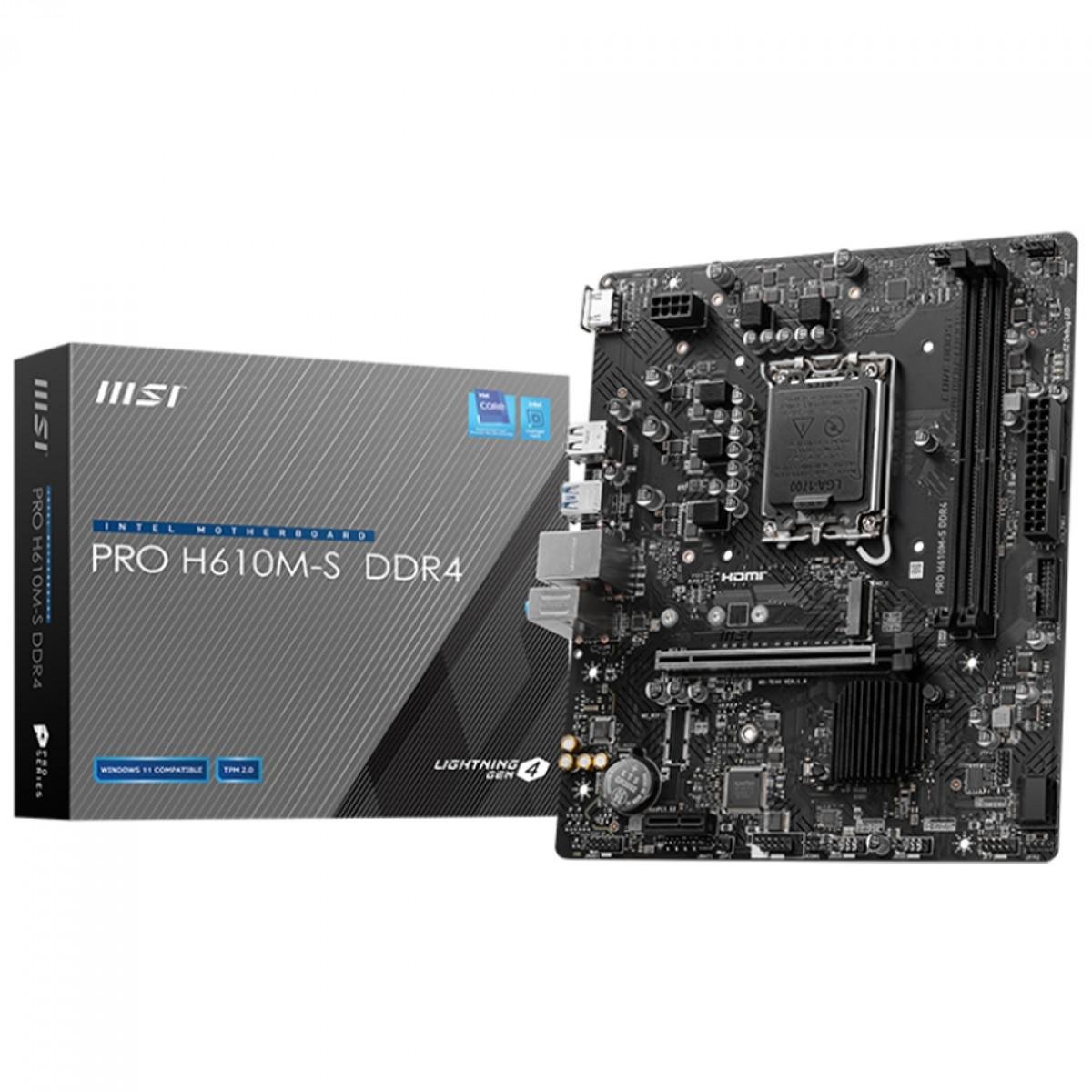

MSI PRO H610M-S DDR4 is a Micro-ATX motherboard with Intel LGA1700 socket, DDR4 memory support, PCIe 4.0, and M.2 NVMe storage for reliable everyday and business performance.
Product Specifications
Product Type: Motherboard
Model: MSI PRO H610M-S DDR4
Socket: Intel LGA1700
Chipset: Intel H610
Form Factor: Micro-ATX
Memory Support: 2 × DDR4 DIMM (Up to 64GB)
Memory Speed: Up to 3200MHz
Storage: 1 × M.2 NVMe, 4 × SATA III (6Gb/s)
PCIe Slot: 1 × PCIe 4.0 x16
Display Outputs: HDMI & VGA
Network: Gigabit Ethernet
USB Ports: USB 3.2 Gen 1 & USB 2.0
Audio: HD Audio
SKU:QCM-00100-WE5N
Categories:Hot Promotions, Mother Board, Mother Board
The MSI PRO H610M-S DDR4 motherboard is built for Intel 12th, 13th, and 14th Generation processors, making it an excellent choice for office PCs, home desktops, and entry-level gaming builds. It features DDR4 memory support, PCIe 4.0 expansion, M.2 NVMe SSD support, and multiple display outputs for smooth performance and future-ready connectivity.
Features
Supports Intel 12th, 13th & 14th Gen Processors
LGA1700 Socket
DDR4 Memory Support
PCIe 4.0 x16 Slot
M.2 NVMe SSD Support
HDMI & VGA Display Outputs
Gigabit LAN Connectivity
Micro-ATX Form Factor
| Product Type | Motherboard |
| Chipset | Intel H610 |
| Memory Supported | 2 × DDR4 DIMM (Up to 64GB) |
| BIOS | 128Mb UEFI AMI BIOS |
| I/O Interface | HDMI, VGA, USB 3.2 Gen 1, USB 2.0, RJ45 LAN, Audio Ports |
| Onboard Interface | 1 × M.2 Slot, 4 × SATA III, Front USB Headers, Front Audio Header |
| Integrated Sound | Realtek HD Audio (7.1 Channel) |
| Integrated LAN | Realtek Gigabit LAN |
| Expansion Slot | 1 × PCIe 4.0 x16, 1 × PCIe x1 |
| LAN | 10/100/1000 Mbps Gigabit Ethernet |
| Audio | 3 × Audio Jacks (Line-In, Line-Out, Mic) |
| Back panel | 1 × HDMI Port1 × VGA Port2 × USB 3.2 Gen 1 Type-A4 × USB 2.0 Ports1 × RJ45 LAN Port3 × Audio Jacks1 × PS/2 Keyboard/Mouse Port |
| On-Board connectors | 1 × 24-Pin ATX Power Connector1 × 8-Pin CPU Power Connector1 × M.2 Slot (NVMe)4 × SATA III (6Gb/s)1 × CPU Fan Header1 × System Fan Header2 × Front USB 2.0 Headers1 × Front USB 3.2 Gen 1 Header1 × Front Panel Audio Header1 × Front Panel Header1 × TPM Header1 × Clear CMOS Jumper |
| Product Dimension (W x D x H) | 236 × 200 × 45 mm |
| Net Weight | Approx. 0.75 kg |
