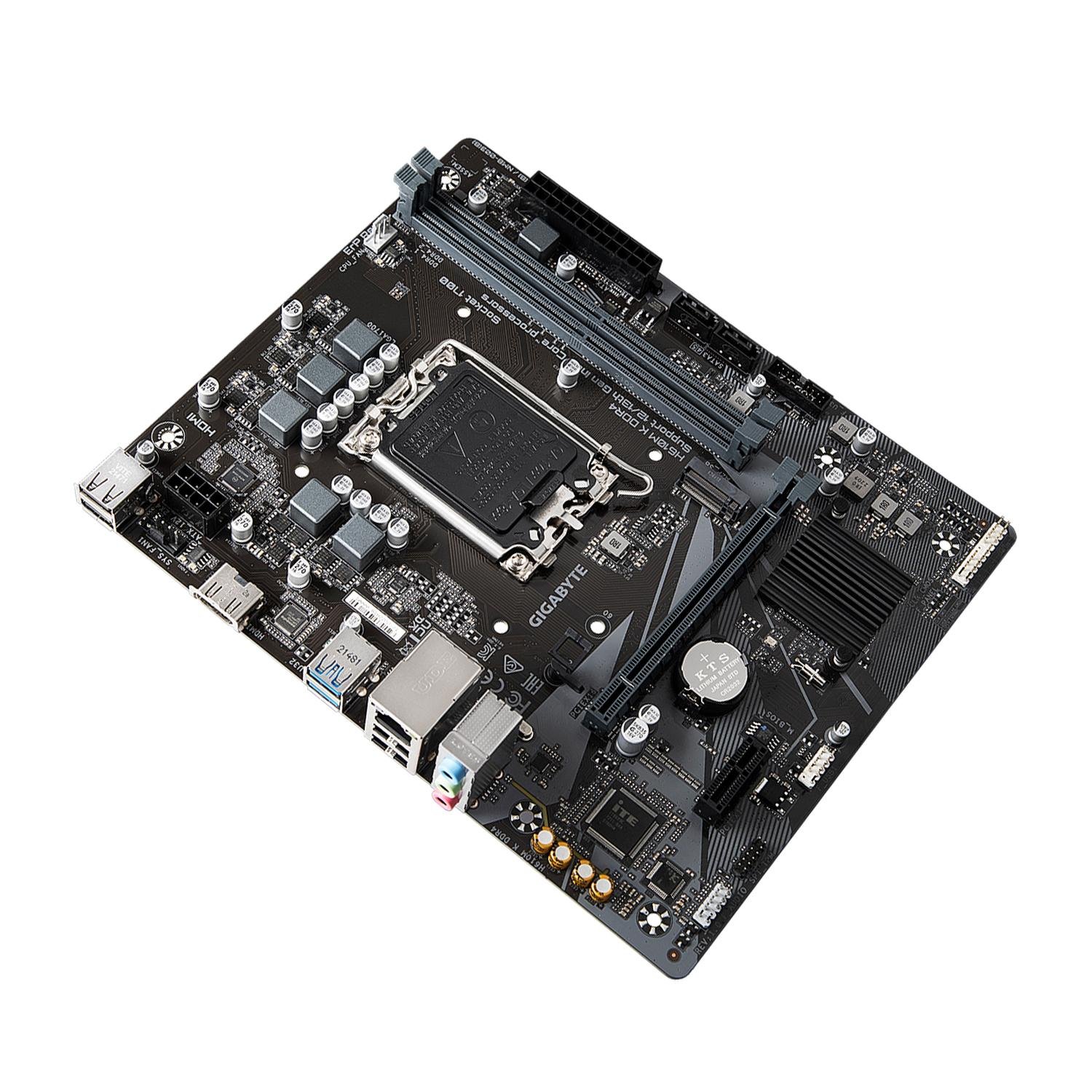

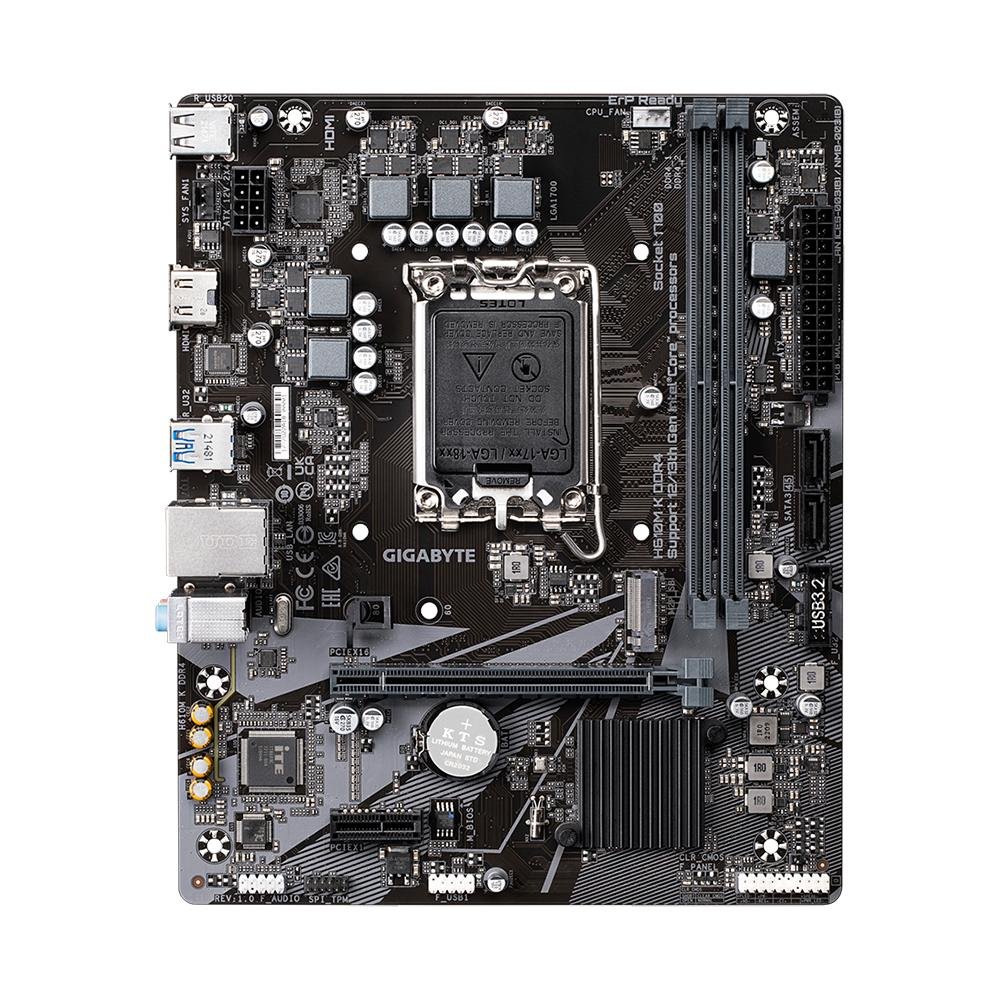

Gigabyte H610M K DDR4 is a Micro-ATX motherboard with Intel LGA1700 socket, DDR4 memory support, PCIe 4.0, and M.2 NVMe compatibility for reliable everyday computing and business builds.
Product Specifications
Product Type: Motherboard
Model: Gigabyte H610M K DDR4
Socket: Intel LGA1700
Chipset: Intel H610
Form Factor: Micro-ATX
Memory Supported: 2 × DDR4 DIMM (Up to 64GB)
BIOS: 128Mb UEFI BIOS
I/O Interface: HDMI, D-Sub (VGA), USB 3.2 Gen 1, USB 2.0, RJ45 LAN, Audio Ports
Onboard Interface: M.2 Slot, SATA III Ports, Front USB Headers, Front Audio Header
Integrated Sound: Realtek HD Audio (7.1 Channel)
Integrated LAN: Realtek Gigabit LAN
Expansion Slot: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
LAN: 10/100/1000 Mbps Gigabit Ethernet
Audio: 3 × Audio Jacks
SKU:QCM-00100-EALQ
Categories:Hot Promotions, Mother Board, Mother Board
The Gigabyte H610M K DDR4 motherboard is designed for Intel 12th, 13th, and 14th Generation processors, making it an excellent choice for office PCs, home desktops, and entry-level gaming systems. It offers DDR4 memory support, PCIe 4.0 expansion, high-speed M.2 NVMe storage, and Gigabit LAN connectivity for dependable performance.
Features
Supports Intel 12th, 13th & 14th Gen Processors
Intel LGA1700 Socket
DDR4 Memory Support
PCIe 4.0 x16 Slot
M.2 NVMe SSD Support
HDMI & VGA Display Outputs
Gigabit LAN Connectivity
Micro-ATX Form Factor
| Supported CPU | Motherboard |
| Product Dimension (W x D x H) | 230 × 215 × 35 mm |
| Chipset | Intel H610 |
| Net Weight | Approx. 0.75 kg |
| Memory Supported | 2 × DDR4 DIMM (Up to 64GB) |
| BIOS | 128Mb UEFI BIOS |
| I/O Interface | HDMI, D-Sub (VGA), USB 3.2 Gen 1, USB 2.0, RJ45 LAN, Audio Ports |
| Onboard Interface | M.2 Slot, SATA III Ports, Front USB Headers, Front Audio Header |
| Integrated Sound | Realtek HD Audio (7.1 Channel) |
| Integrated LAN | Realtek Gigabit LAN |
| Expansion Slot | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |
| LAN | 10/100/1000 Mbps Gigabit Ethernet |
| Audio | 3 × Audio Jacks |

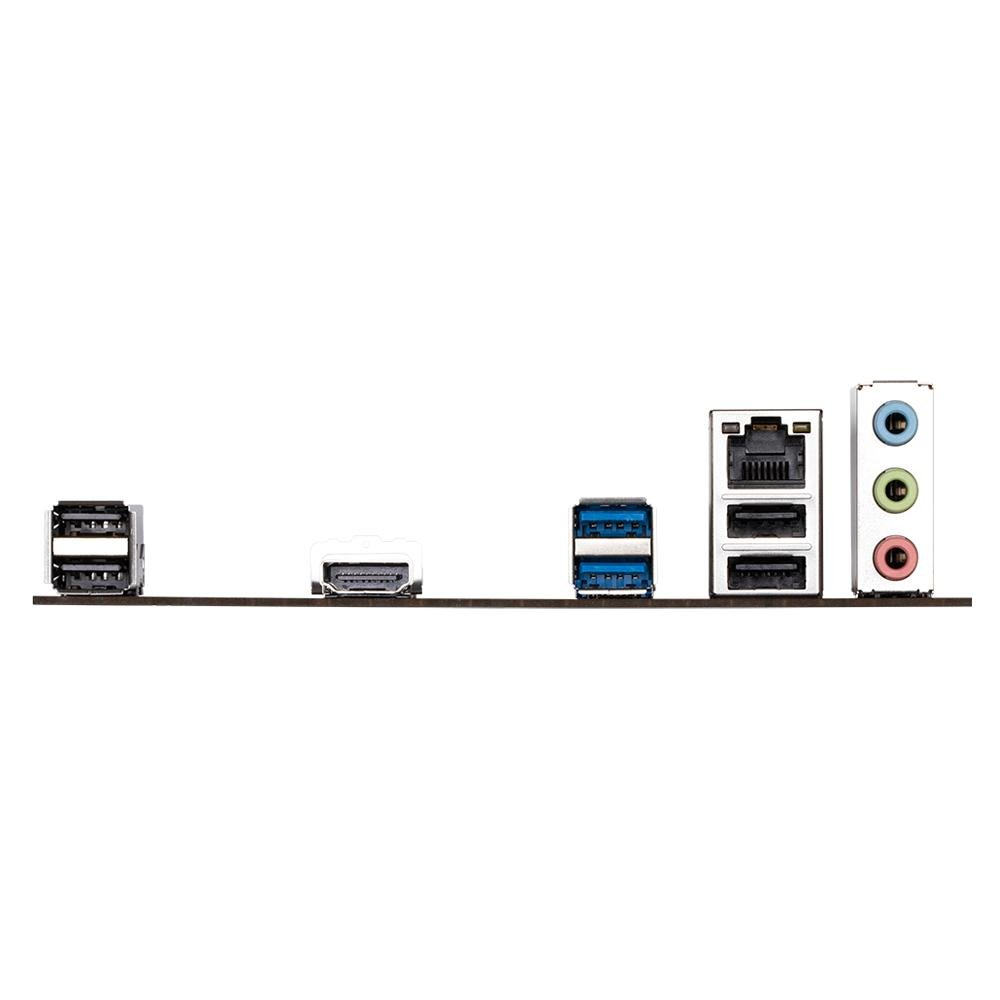

| Back panel | 1 × HDMI Port1 × D-Sub (VGA) Port2 × USB 3.2 Gen 1 Ports4 × USB 2.0 Ports1 × RJ45 LAN Port3 × Audio Jacks1 × PS/2 Keyboard/Mouse Port |
| On-Board connectors | 1 × 24-Pin ATX Power Connector1 × 8-Pin CPU Power Connector1 × M.2 Socket (NVMe PCIe 3.0 x4)4 × SATA III (6Gb/s)1 × CPU Fan Header1 × System Fan Header1 × Front USB 3.2 Gen 1 Header2 × Front USB 2.0 Headers1 × Front Panel Audio Header1 × Front Panel Header1 × TPM Header1 × Clear CMOS Jumper |
