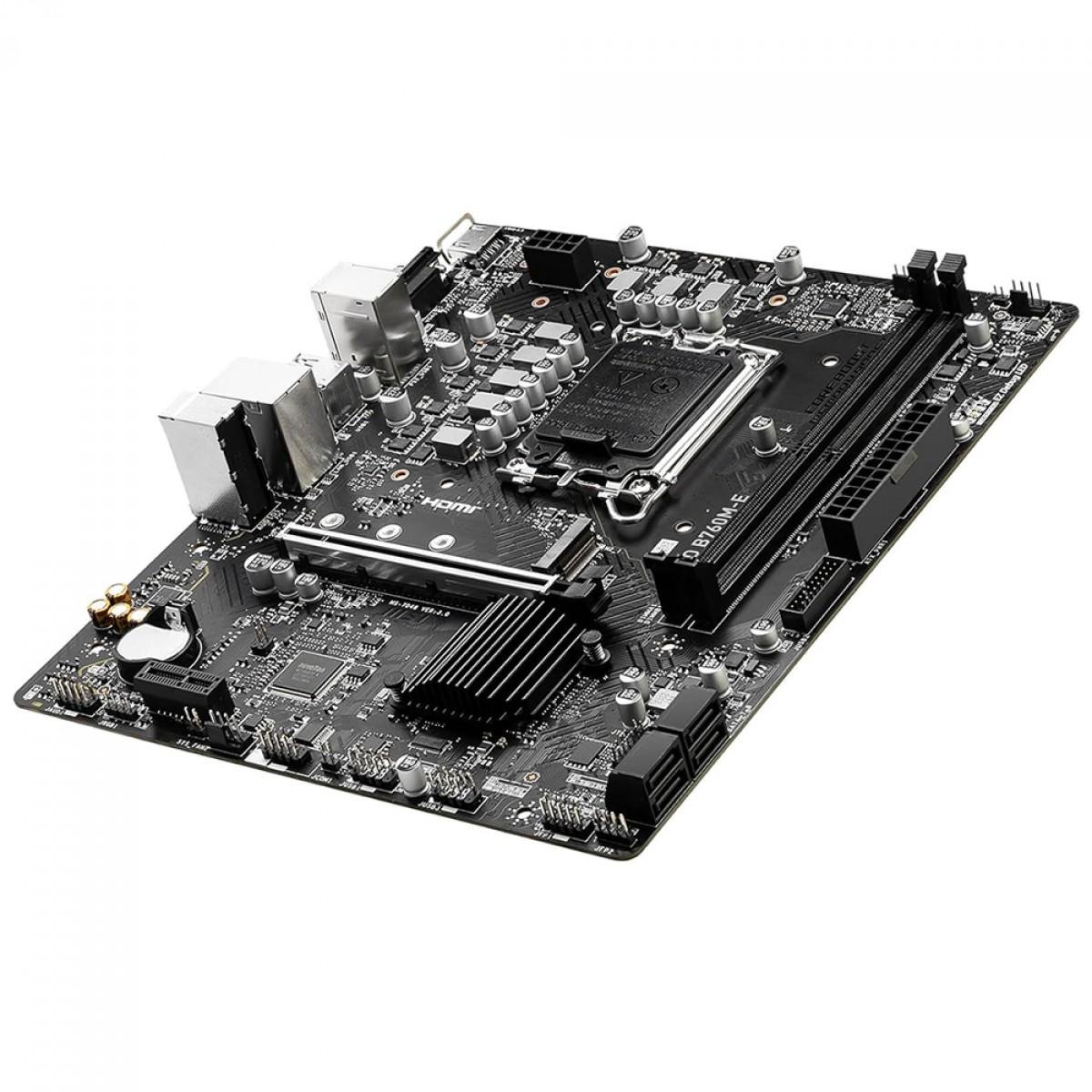

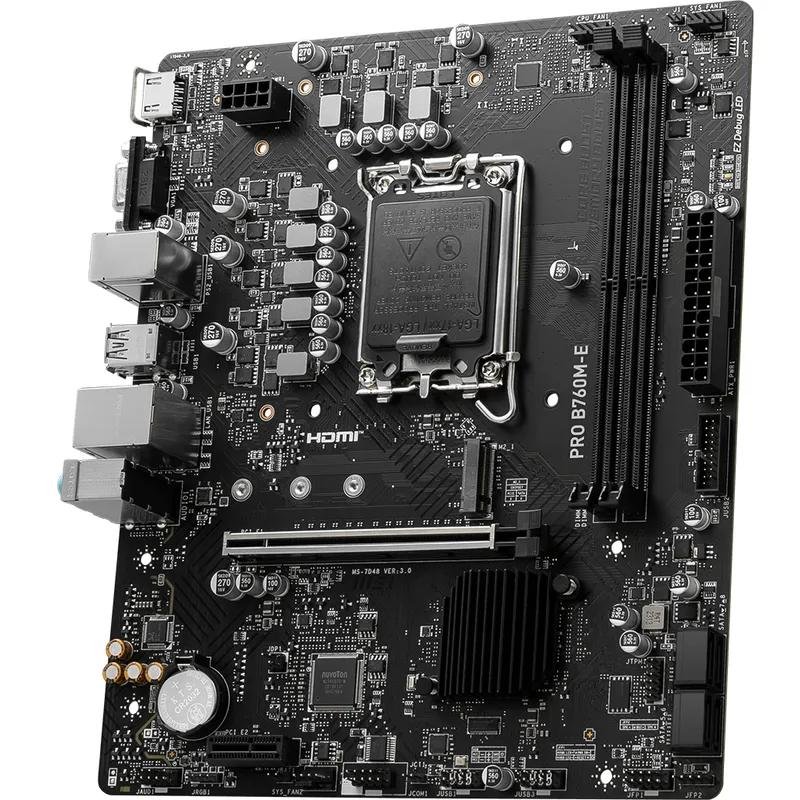

MSI PRO B760M-E DDR5 is a Micro-ATX motherboard with Intel LGA1700 socket, DDR5 memory support, PCIe 4.0, and M.2 NVMe compatibility for high-performance gaming and productivity builds.
Product Specifications
Product Type: Motherboard
Model: MSI PRO B760M-E DDR5
Socket: Intel LGA1700
Chipset: Intel B760
Form Factor: Micro-ATX
Memory Supported: 2 × DDR5 DIMM (Up to 96GB)
Memory Speed: Up to 6800+ MHz (OC)
BIOS: 256Mb UEFI AMI BIOS
I/O Interface: HDMI, VGA, USB 3.2 Gen 1, USB 2.0, RJ45 LAN, Audio Ports
Onboard Interface: M.2 Slot, SATA III Ports, Front USB Headers, Front Audio Header
Integrated Sound: Realtek HD Audio (7.1 Channel)
Integrated LAN: Realtek Gigabit LAN
Expansion Slot: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
SKU:QCM-00100-XSSD
Categories:Hot Promotions, Mother Board
The MSI PRO B760M-E DDR5 motherboard is designed for Intel 12th, 13th, and 14th Generation processors, making it an excellent choice for gaming PCs, office workstations, and content creation systems. With high-speed DDR5 memory support, PCIe 4.0 expansion, M.2 NVMe storage, and Gigabit LAN connectivity, it delivers reliable performance and future-ready connectivity.
Features
Supports Intel 12th, 13th & 14th Gen Processors
Intel LGA1700 Socket
DDR5 Memory Support
PCIe 4.0 x16 Slot
M.2 NVMe SSD Support
HDMI & VGA Display Outputs
Gigabit LAN Connectivity
Micro-ATX Form Factor
| Product Type | Motherboard |
| Supported CPU | 12th Generation Intel Processors13th Generation Intel Processors14th Generation Intel Processors |
| Chipset | Intel B760 |
| Memory Supported | 2 × DDR5 DIMM (Up to 96GB) |
| BIOS | 256Mb UEFI AMI BIOS |
| I/O Interface | HDMI, VGA, USB 3.2 Gen 1, USB 2.0, RJ45 LAN, Audio Ports |
| Onboard Interface | M.2 Slot, SATA III Ports, Front USB Headers, Front Audio Header |
| Integrated Sound | Realtek HD Audio (7.1 Channel) |
| Integrated LAN | Realtek Gigabit LAN |
| Expansion Slot | 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 |

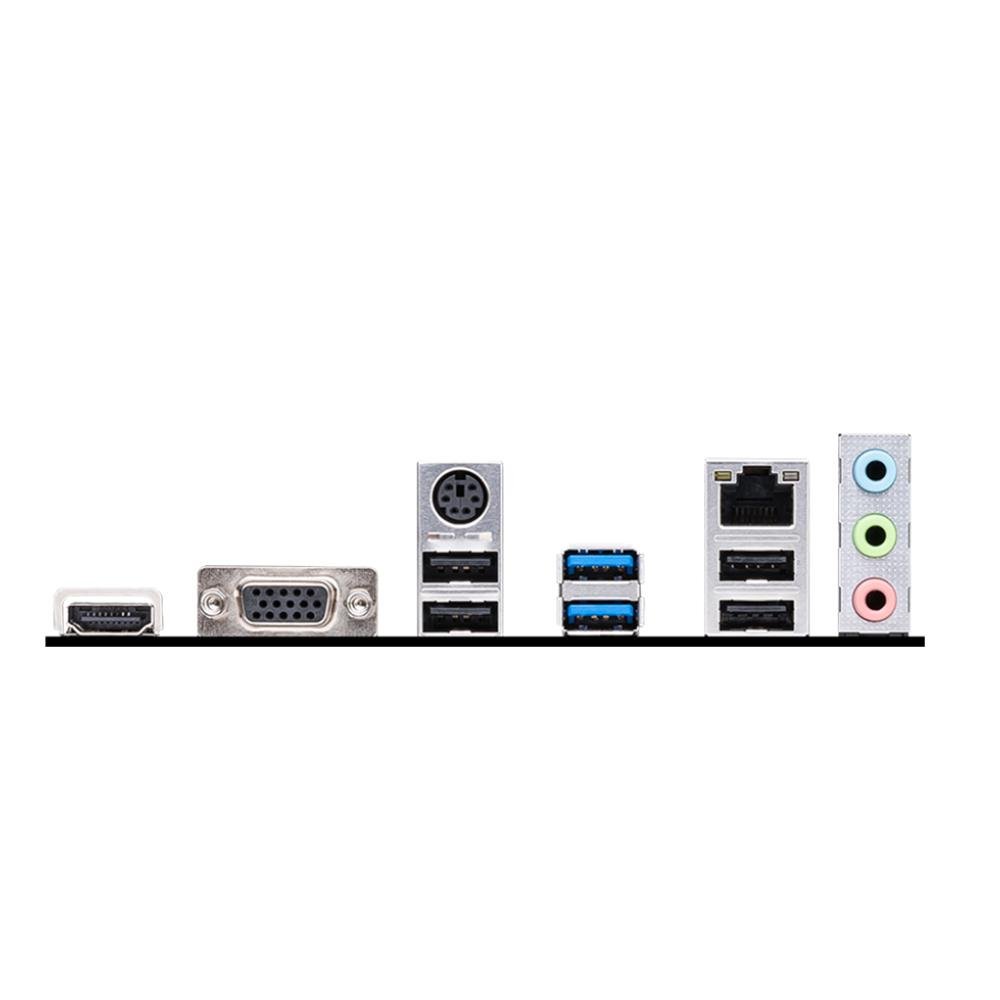

| Back panel | 1 × HDMI Port1 × VGA Port2 × USB 3.2 Gen 1 Ports4 × USB 2.0 Ports1 × RJ45 LAN Port3 × Audio Jacks1 × PS/2 Keyboard/Mouse Port |
| On-Board connectors | 1 × 24-Pin ATX Power Connector1 × 8-Pin CPU Power Connector1 × M.2 NVMe Slot (PCIe 4.0)4 × SATA III (6Gb/s)1 × CPU Fan Header1 × System Fan Header1 × Front USB 3.2 Gen 1 Header2 × Front USB 2.0 Headers1 × Front Panel Audio Header1 × Front Panel Header1 × TPM Header1 × Clear CMOS Jumper |
| Product Dimension (W x D x H) | 243 × 211 mm |
